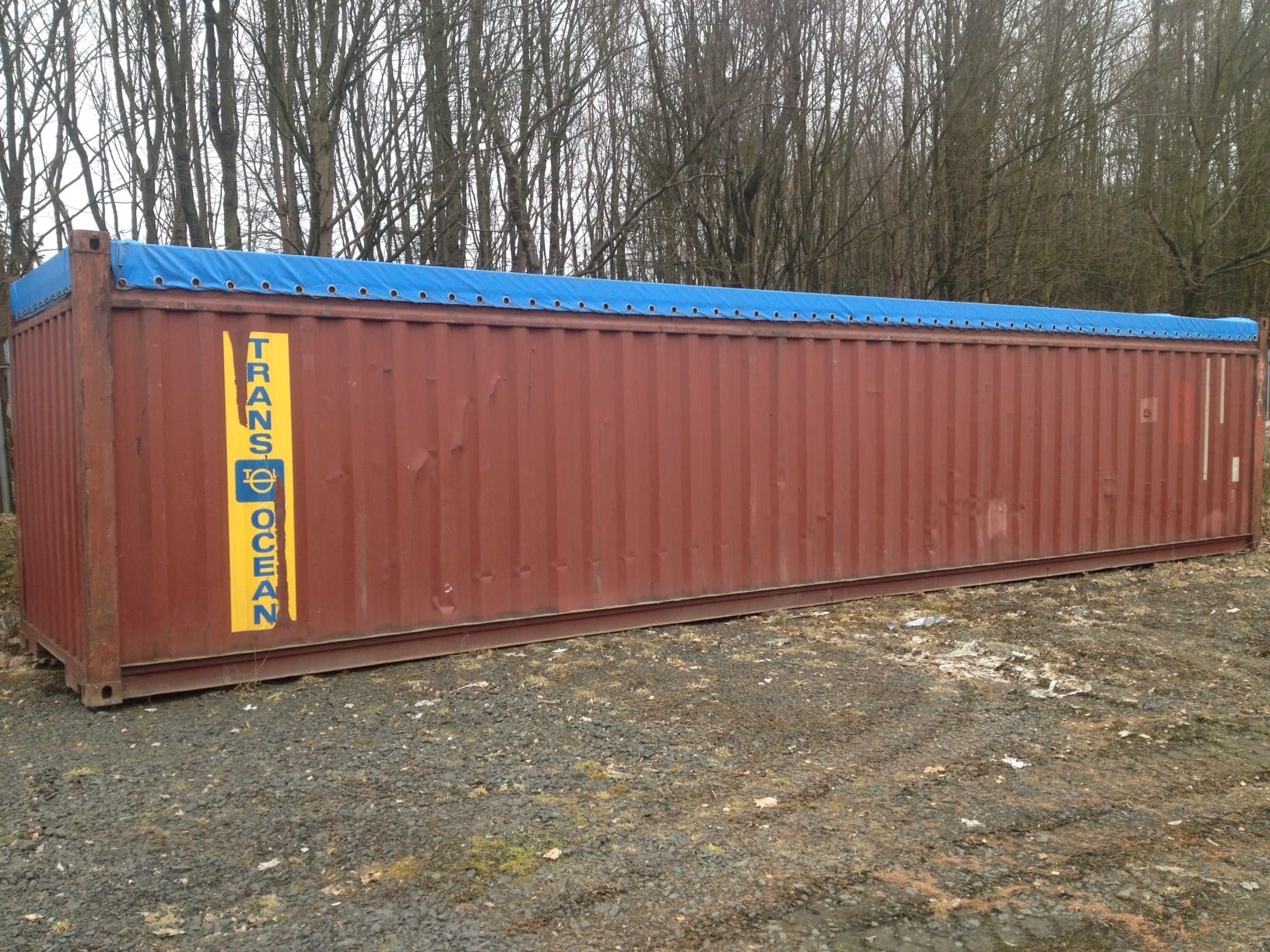

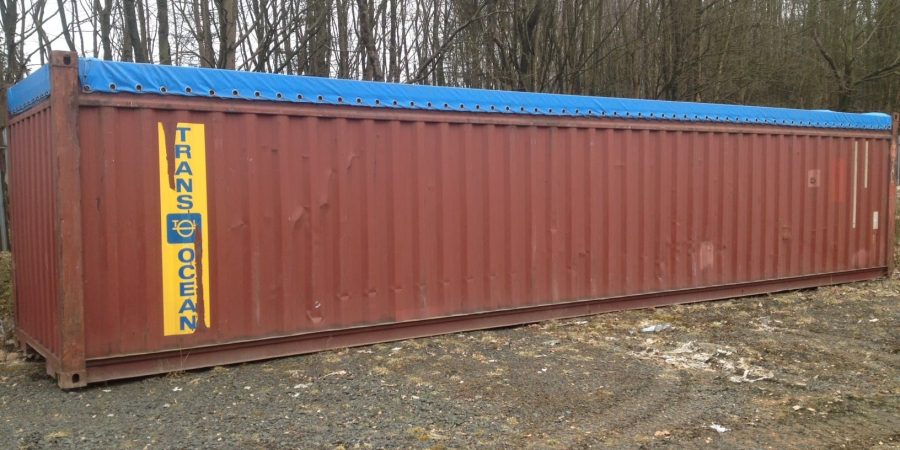

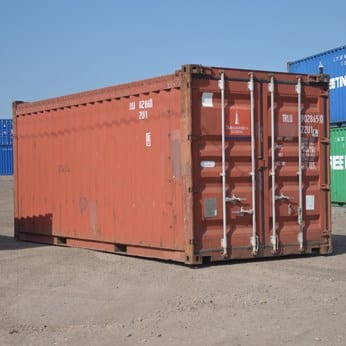

Open top containers are specialised units for goods which have to be loaded using a crane. They are a modification of the standard specification and are made for the transportation of heavy or bulky cargo, or over-height loads that will not fit through the conventional doors, or otherwise needs a crane in order to be loaded efficiently and safely. Some examples of such cargo include large pipes, steel bars, general industrial cargo, iron ore, cabling, logs and mining material.

Loading such bulky goods using a crane is both easy and efficient with open top containers.

Available Shipping Containers Sizes

Open Top



Key Features

  • Used
  • All ‘Corten Steel’ construction
  • Removable or swingable rear header
  • Removable TIR approved tarpaulin and wire
  • Removable roof bows
  • Exterior hinged double doors at end
  • Two locking bars on each door
  • Factory fitted lockbox
  • 2 x forklift pockets on each side on 20′ option
  • 28mm wooden floor on steel cross members

Description

  • Top loading and door loading containers are both available
  • Sealing and bow attachable devices
  • TIR endorsed PVC tarpaulins available, or tilts with rear header optionally removable
  • Lashing rings (heavy duty) in the bottom side rail or the floor
  • Plywood or hardwood timber floor

Please note that the roof opening will be smaller than the internal dimensions of the container because of the protruding top side rails; these are necessary in order to support the stubs and the roof bows.



External Sizes

External SizesLength (ft | mm)Width (ft | mm)Height (ft | mm)
20ft Open Top19' 11" | 6058mm8' | 2438mm8' 6" | 2591mm
40ft Open Top40' | 12192mm8' | 2438mm8' 6" | 2591mm

Internal Sizes

Internal SizesLength (ft | mm)Width (ft | mm)Height (ft | mm)
20ft Open Top19' 4" | 5898mm7' 9" | 2352mm7' 10" | 2393mm
40ft Open Top39' 5" | 12021mm7' 9" | 2352mm7' 10" | 2393mm

Weight

WeightGross Weight ( kg | lbs)Tare Weight ( kg | lbs)Net Weight ( kg | lbs)
20ft Open Top24000 kg | 52910 lbs2200 kg | 5070 lbs21700 kg | 47840 lbs
40ft Open Top30480 kg | 67200 lbs4050 kg | 8926 lbs26430 kg | 58274 lbs
